A Deep Dive Into Donex Ransomware [Part 2]
Created at: 18/04/2025, 15:08:12.: #malware-analysis, #reverse-engineering, #real-world :.
Table of Contents
Here you can find part 1 of my Donex Ransomware Analysis blog post series.
Introduction
In case you are interested in a more detail analysis, I am also recording my analysis process and uploading the videos in my YouTube channel. You can find the playlist here.
Part 1 Checkpoint

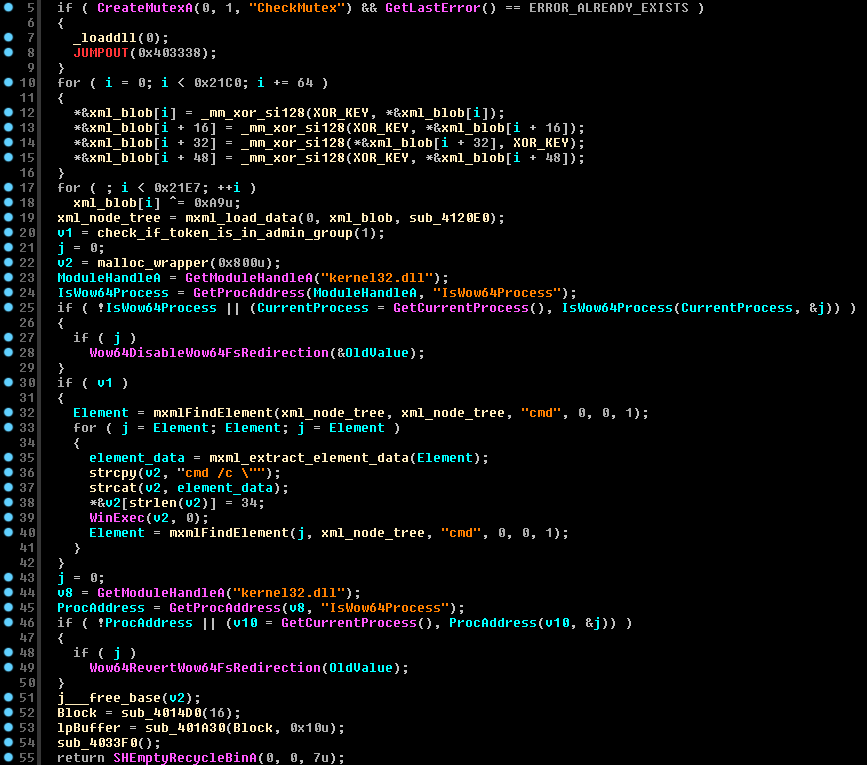

This is how our decompilation looks like from the first part.

We have a good idea of what the malware does so far but we still have to deal with the three last mysterious functions, namely 0x4014d0
, 0x401a30
and 0x4033f0
. Since we love cryptography (at least I do), we expect to find the crypto-related thingies in there so let’s get into it.
sub_4014d0
(Random 16-byte key Generation)
Let’s isolate the part of the code that we will analyze.
BOOL __usercall sub_4014D0@<eax>(HCRYPTPROV a1@<ebp>, signed int a2)
{
// [COLLAPSED LOCAL DECLARATIONS. PRESS KEYPAD CTRL-"+" TO EXPAND]
v13[1] = a1;
v13[2] = retaddr;
if ( CryptAcquireContextA(v13, 0, 0, 1u, 0)
|| GetLastError() != 0x80090016
|| (result = CryptAcquireContextA(v13, 0, 0, 1u, 8u)) )
{
v3 = malloc(a2);
memset(v3, 0, a2);
if ( CryptGenRandom(v13[0], a2, v3) )
{
v4 = 0;
if ( a2 > 0 )
{
if ( a2 >= 8 && dword_439E74 >= 2 )
{
// ... REDACTED ...
The redacted part performs just a bunch of arbitrary numerical operations such as additions, shuffles, XORs etc.
As in every situation that we deal with with the Windows API, we will embrace https://learn.microsoft.com/en-us/windows/win32/api/ - our home sweet home. Looking at the documentation while reverse engineering, helps us label function arguments which significantly helps in our understanding of how the program operates.
From the documentation of the (deprecated) function CryptAquireContextA
, we deduce that the type of v13
should be HCRYPTPROV *
so we can change its type in IDA by pressing Y
. Then, the penultimate argument, which corresponds to dwProvType
, has the value 0x01
. Here you can find a list of all the available cryptographic provider types. But 0x01
is quite useless to us, we need to find the macro name corresponding to that value. We can click on 0x01
and press M

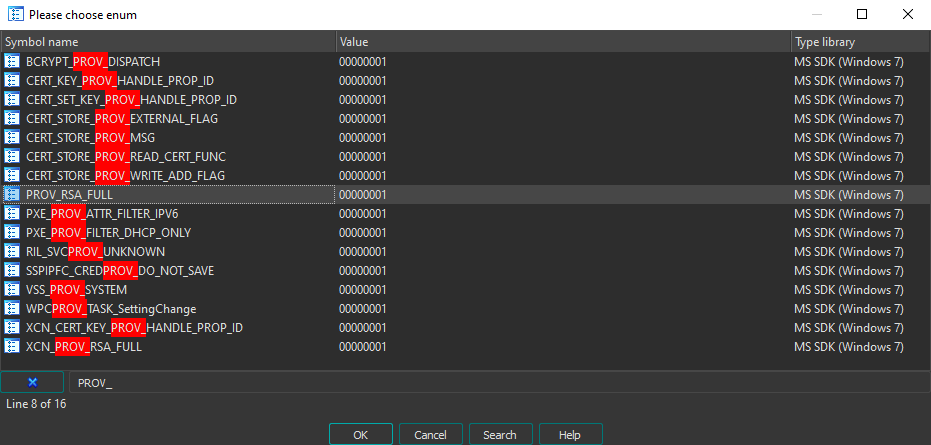

. This will show us a list of defined enums and macros inside IDA. We search for PROV_
and we find that 0x01
corresponds to PROV_RSA_FULL
.

Similarly, we find that the error code 0x80090016
corresponds to NTE_BAD_KEYSET
. Moreover, the last argument of the next call to CryptAquireContextA
, which corresponds to dwFlags
has the value 0x08
. Following a similar approach, we find that this flag value corresponds to CRYPT_NEWKEYSET
.
Our next API function is CryptGenRandom
. As the name implies, this function generates random bytes of given length and stores them into a buffer. From the docs, we can rename the arguments as follows:
CryptGenRandom(hProv, dwLen, pbBuffer)
The argument of sub_4014d0
is 0x10
which turns out to be dwLen
. From that, we understand that a random 16-byte string is generated and stored in pbBuffer
. Given that this is a ransomware, we can suspect that this is a symmetric encryption key. This key is then furtherly processed and is finally returned from this function.
Honestly, I really don’t know why the malware authors decided to process the key and not just use a plain 16-byte string as the key. This additional process adds nothing to the security of the key.
Anyways, let’s rename sub_4014d0
to generate_random_16byte_key
.
sub_401a30
(Figuring out the cryptographic library)
Chaos begins to emerge…
This function appears to be part of some library that does cryptographic thingies. Reverse engineering such libraries can be extremely painful. For example, implementing RSA-2048 encryption in python can be trivially implemented as c = pow(m, e, n)
. However, in C, there are no built-in data types to support such large numbers, so we need to build custom data types. Usually, these data types are arrays of specific sized words. For instance, a 2048-bit number could be represented as an array of 128 16-bit words. Implementing mathematical operations, such as modular exponentiation, using these custom data types is really, really … messy.
I didn’t even attempt to reverse engineer this function and quickly made the educated guess that the malware authors didn’t implement their own crypto and used some open source cryptographic library. To find this library, we will follow the same approach as for the XML library in part 1.
In sub_401a30
, we see the following call:
sub_4089C0(v15, sub_4082D0, v14, "rsa_encrypt", 0xBu);
This is poggers for two reasons:
- We learned that RSA encryption is involved.
- We know a string literal that might prove significant for figuring out the cryptographic library.
Vibe search prompt creating
Additionally, the ultimate key for successfully finding what we are looking for, is the search prompt that we use (yes, prompts were important before the LLM-era too).
For our case, the prompt "rsa_encrypt" in:github filetype:c
would be a good start. Unfortunately, this is quite a short string and pretty common among several libraries, such as polarssl, openssl, mbedtls and others.
A good idea would be to search for longer strings which are more unlikely to appear in multiple libraries, for example pbeWithSHAAnd3-KeyTripleDES-CBC

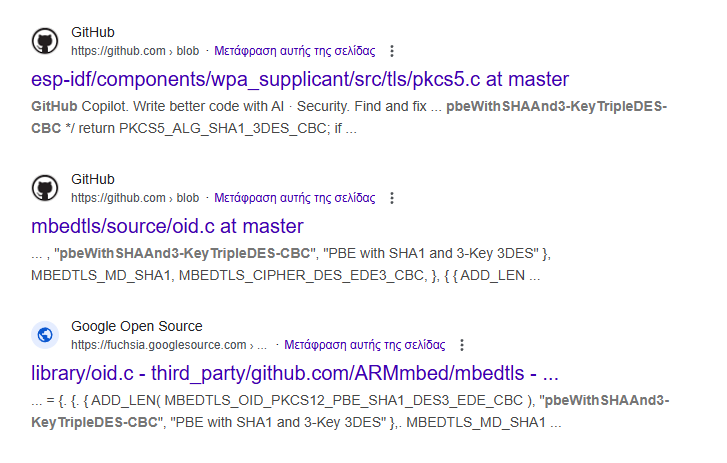

. With this prompt, the search returns only three results:

Note that the second result is part of a minimalistic fork of the original mbedtls repository.
We found a strong candidate for our library and that is mbedtls

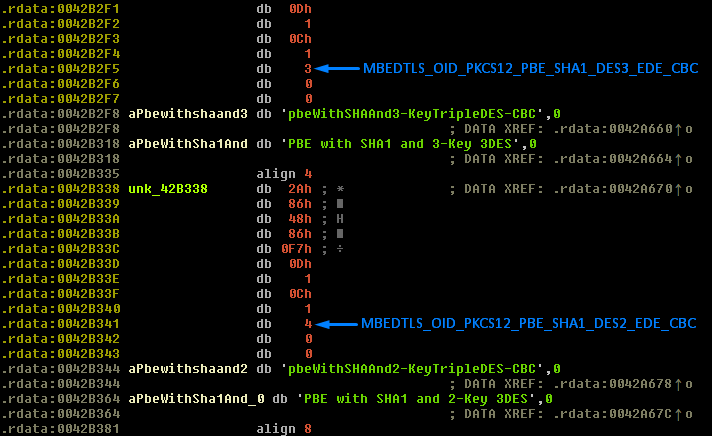

. Navigating the library’s source code and by looking at specific strings like these are indicators that our finding is correct.

The data appear adjacent, as in the original source code.
Great! We found the library, let’s see if we can find any references to the string rsa_encrypt
. It turns out that it is referenced in the file programs/pkey/rsa_encrypt.c
.
The program
folder contains some example use cases to help users use the mbedtls API and looks like the function we are analyzing is … heavily influenced by this specific program
Library source code:
const char *pers = "rsa_encrypt";
// REDACTED ...
mbedtls_mpi_init(&N); mbedtls_mpi_init(&E);
mbedtls_rsa_init(&rsa);
mbedtls_ctr_drbg_init(&ctr_drbg);
mbedtls_entropy_init(&entropy);
ret = mbedtls_ctr_drbg_seed(&ctr_drbg, mbedtls_entropy_func,
&entropy, (const unsigned char *) pers,
strlen(pers));
IDA decompilation:
sub_406AD0(v17);
sub_406AD0(v18);
sub_407C60(v16);
sub_408770(v15);
sub_408430(v14);
sub_4089C0(v15, sub_4082D0, v14, "rsa_encrypt", 0xBu);
I don’t know about you but these two code snippets look identical to me. Eureka!😄
We can go ahead and carefully rename the variables and the symbols in our decompilation until the result looks identical to the original. Then the function should look as follows:
void *__cdecl sub_401A30(void *random_16byte_key, size_t key_length)
{
// REDACTED ...
mbedtls_mpi_init(N);
mbedtls_mpi_init(E);
mbedtls_rsa_init(rsa_ctxt);
mbedtls_ctr_drbg_init(ctr_drbg);
mbedtls_entropy_init(entropy);
mbedtls_ctr_drbg_seed(ctr_drbg, mbedtls_entropy_func, entropy, "rsa_encrypt", 0xBu);
v4 = sub_402500(&Block);
// REDACTED...
mbedtls_mpi_read_file(N, 0x10u, v22);
mbedtls_mpi_read_file(E, 0x10u, v10);
mbedtls_rsa_import(rsa_ctxt, N, 0, 0, 0, E);
encrypted_random_16byte_key = malloc(0x200u);
memset(encrypted_random_16byte_key, 0, 0x200u);
mbedtls_rsa_rsaes_pkcs1_v15_encrypt(
rsa_ctxt,
mbedtls_ctr_drbg_random,
ctr_drbg,
key_length,
random_16byte_key,
encrypted_random_16byte_key);
return encrypted_random_16byte_key;
}
However, there is still one function not defined in mbedtls and looks donex-specific; that is sub_402500
.
sub_402500
(Extracting the RSA public key from the malware’s overlay)
For some reason, this function is unnecessarily verbose, while all it does is:
- The malware opens itself.
- Reads the data and stores them into a buffer.
- Returns a specific offset inside this buffer.
One can debug this piece of code inside a VM or do the arithmetic by hand using any hex editor, only to find out that:
v9 = *a1 + *(*a1 + 60);
return *a1 + *(v9 + *(v9 + 20) + 40 * *(v9 + 6)) + *(v9 + *(v9 + 20) + 40 * *(v9 + 6) + 4);
returns the offset 0x37e00
. At this offset, there are some hex data defined.
It’s a good exercise to try and figure out how this value is derived but here is my reasoning:
Since a PE file is read, we know that position 0x00
points to the IMAGE_DOS_HEADER
and that position 0x60
points to the IMAGE_NT_HEADERS
. Therefore we can change the type of these variables and then the decompilation makes much more sense.
nt_headers = (*&a1->e_magic + *(*&a1->e_magic + 60));
return *&a1->e_magic
+ *(&nt_headers->Signature + 40 * nt_headers->FileHeader.NumberOfSections + nt_headers->FileHeader.SizeOfOptionalHeader) // 0x110 + 40 * 0x05 + 0xe0 = 0x2b8
+ *(&nt_headers->FileHeader.Machine + 40 * nt_headers->FileHeader.NumberOfSections + nt_headers->FileHeader.SizeOfOptionalHeader); // 0x114 + 40 * 0x05 + 0xe0 = 0x2bc
This can be translated to:
*(0x00 + *(0x110 + 40 * 0x05 + 0xe0) + *(0x114 + 40 * 0x05 + 0xe0))
or equivalently:
*(0x00 + *(0x02b8) + *(0x02bc)) = *(0x00001c00 + 0x00036200) = *(0x37e00)
Converting the overlay data to an RSA public key
Back to sub_401A30
, after the call to sub_402500
, there are the following lines:
v4 = sub_402500(&Block);
v5 = v20;
qmemcpy(v2, v4, 0x200u);
It looks like it copies 0x200 = 512
bytes from this offset and copies it to v2
. At this point, knowing that RSA is involved in the ransomware, we are pretty sure that this is the public RSA-4096 modulus N
. For completeness (and have some impact on the google search indexing algorithm), the modulus is:
E3958800A4EE74BF5983967E3C658693CA93777EB8CA79FD724F6E6F71CD4724FFCD0F244AEBE33B87CC9F453878AB0C2DD69406C8ADFACE7AF9FAE46A37B5E5FC835DB3AE3F2261CD768F55CE15F327E6DB6142830A6CF5998143330268CFC7155E3B1B0161BA109403FDFA3D61A03AD24ED7F2B41E8A0BAE74A8C938F97B648546CE3EC0AD8B4115A156D568EE499B0D6411B0F9BC6E5087D062E3D541B3FE0B950412C399276EB0EF4D39743AE8411B6B42DBBC5694245816AC1BF99E5A1B1FC3870213ECA845807D5DF81EB07AC9F76894E31B89A2640FA40858CDEFD2B951B40927B64FC1A364FCE781DF4D90EB8F64DC8D4099A233EB3D791508809289
Then, the public exponent E
lies, which is the standard value 0x010001
and finally, there is a hex extension that the malware appends to all the encrypted files, that is f58A66B51
.
Having figured out all this, let’s summarize what sub_401A30
does.
- Initializes the rsa and the entropy context along with some other stuff required for encrypting with RSA.
- Extracts the RSA public key from the malware’s overlay data and converts them from hex to mbedtls’ data type
mpi
. - It encrypts the 16-byte symmetric key generated from
sub_4014d0
using PKCS #1 v1.5 RSA-4096.
Therefore, let’s rename sub_401A30
to rsa_encrypt_random_16byte_key
and sub_402500
to read_public_key_from_self
.
Moving on…
sub_4033f0
(Setting the default icon for encrypted files)
After the analysis of the previous function, this one should feel like a breeze.
Most symbols and variable names are already there so it’s pretty straight forward to understand that this function, extracts the data from the ico
XML tag, base64-decodes them and writes them to the local file C:\ProgramData\icon.ico
.
This is deduced by the following snippet:
v0 = fopen("C:\\ProgramData\\icon.ico", "wb");
Element = mxmlFindElement(xml_node_tree, xml_node_tree, "ico", 0, 0, 1);
element_data = mxml_extract_element_data(Element);
sub_408A50(0, 0, &ElementCount, element_data, strlen(element_data));
v3 = malloc_wrapper(ElementCount);
sub_408A50(v3, ElementCount, &ElementCount, element_data, strlen(element_data));
fwrite(v3, 1u, ElementCount, v0);
fclose(v0);
Since the data in config.xml
are base64-encoded, we make an educated guess that sub_408A50
does the base64 decoding. It calls it twice because the first time it needs to determine the size of the decoded data so that it can allocate a proper buffer to store them into. The data are actually stored in v3
in the second function call.
Finally, there are some registry keys being set that do the following:
- Set the string
.f58A66B51
as the extension for any encrypted file - Set
icon.ico
as the default icon for the encrypted files.
Let’s rename sub_4033f0
to set_default_icon_and_post_enc_extension
.
That’s all dudes and dudettes, see ya on the next part🙂
